Epoxy Resin Curing Agent 문의 도쿄+81-3-5540-8105 오사카+81-6-6203-3963
Liquid Acid Anhydrides
Liquid acid anhydrides feature a low viscosity and excellent impregnating ability. When combined with a large amount of fillers, they help reduce costs, which has led to their widespread adoption in a range of applications, including for lamination, filament winding (FW) molded products, and electric insulation and sealing materials (impregnation, casting) used in various transformers, coils, and capacitators.

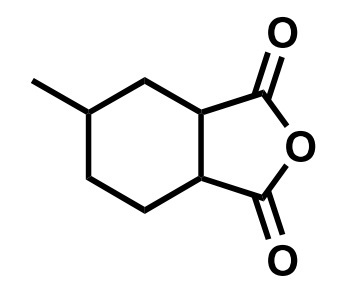

RIKACID MH-700 is a liquid alicyclic acid anhydride, mainly consisting of 4- methyl HHPA. It is suitable for use in epoxy resin curing agents and gives a clear and colorless finish to products.
RIKACID MH-700G has improved features in heat resistance, color stability and degassing. This user-friendly product gives molded epoxy resin products a clear and colorless finish.
As an alicyclic acid anhydride developed by New Japan Chemical Co., Ltd., this epoxy resin curing agents is extremely suitable for optic electronic materials such as LEDs.
| 제품명 | 구조식 | TDS | Appearance | Acid anhydride equivalent | Packing |
|---|---|---|---|---|---|
| RIKACID MH-700 |
|
|
Clear, liquid | 161-166 | Drum（220kg） Can（20kg） |
| RIKACID MH-700G |
|
|
Clear, liquid | 161-166 | Drum（220kg） Can（20kg） |
| RIKACID MH |
|
|
Clear, liquid | 166-170 | Drum（220kg） Can（20kg） |
| RIKACID MH-T |
|
|
Clear, liquid | 166-170 | Drum（220kg） Can（20kg） |
| RIKACID MTA-15 |
|
|
Brown, liquid | approx. 180 | Drum（220kg） Can（20kg） |
| RIKACID HNA-100 |
|
|
Clear, liquid | 174-184 | Can（20kg） |
| RIKACID OSA |
|
|
Viscous, liquid | 205-220 | Drum（200kg） Can（18kg） |
| RIKACID DDSA |
|
|
Viscous, liquid | 258-285 | Drum（200kg） Can（17kg） |
Solid Acid Anhydrides
RIKACID TH (THPA) and RIKACID HH (HHPA) are used as curing agents in transfer molding processes. THPA is used as a general-purpose item, whereas HHPA is used particularly in cases that require a colorless and transparent material.
These acid anhydrides form a low-viscosity liquid at curing temperatures and exhibit excellent impregnating ability, adhesiveness, and electric insulation, among other properties.
Our TMEG series of acid anhydrides are a collection of polyfunctional acid anhydrides that offer exceptional heat resistance when solid. They are used as curing agents in powder paints and coatings for exterior finishes on coils, hybrid integrated circuits (IC), and capacitors.
RIKACID TMEG-500 and 600 are used as curing agents for powder epoxy resins and improve adhesion and flexibility. TMEG-S is used in heat-resistant insulated varnish. TMEG-100 and 200 are used as raw materials in polymides and polyamide-imides.
RIKACID TBN-100 is an acid anhydride that allows for curing epoxy
| 제품명 | 구조식 | TDS | Applications | Appearance | Acid anhydride equivalent |
|---|---|---|---|---|---|
| RIKACID TH |
|
|
Epoxy resin hardeners | White, flakes | 153-155 |
| RIKACID HH |
|
|
Epoxy resin hardeners | White, solid | 152-158 |
| RIKACID SA |
|
|
Epoxy resin hardeners | White, tablet-like | 100-102 |
| RIKACID TMEG-S |
|
|
Heat resistant varnish, adhesive, epoxy resin hardeners |
Broun, solid | 214-262 |
| RIKACID TMEG-100 |
|
|
Epoxy powder, raw materials for polyimide |
Pale yellow, powder | 191-222 |
| RIKACID TMEG-200 |
|
|
Epoxy powder | Pale yellow, powder | 200-215 |
| RIKACID TMEG-500 |
|
|
Epoxy powder | Pale yellow, powder | 200-220 |
| RIKACID TMEG-600 |
|
|
Epoxy powder | Light brown, fine powder | 200-220 |
| RIKACID TMTA-C |
|
|
Epoxy resin hardeners | Brown, blocks | 204-224 |
| RIKACID BT-100 |
|
|
Epoxy powder, raw materials for polyimide |
White, powder | - |
| RIKACID TDA-100 |
|
|
Epoxy powder, raw materials for polyimide |
White, powder | - |
| RIKACID TBN-100 | - |
|
Thin film molding | White, powder | 400-500 |
Heat-resistant Acid Anhydrides
RIKACID TMTA-C and MTA-15 are exceptionally heat-resistant epoxy resin curing agents available both in solid and liquid form depending on the applications.
RIKACID HNA-100 is an acid anhydride-based epoxy resin curing agent that also imparts resistance to heat. Its exceptional curing properties provide films that are thin, transparent, and resistant to moisture.
| 제품명 | 구조식 | TDS | Appearance | Acid anhydride equivalent | Packing |
|---|---|---|---|---|---|
| RIKACID TMTA-C |
|
|
Brown, blocks | 204-224 | Can（20kg） |
| RIKACID MTA-15 |
|
|
Brown, liquid | approx. 180 | Drum（220kg） Can（20kg） |
| RIKACID HNA-100 |
|
|
Clear, liquid | 174-184 | Can（20kg） |
Flexible Acid Anhydrides
RIKACID HF-08 is used as a modifier and additive in combination with other acid anhydrides. It improves adhesion, flexibility, and resistance to thermal shock among other properties.
RIKACID OSA and DDSA are acid anhydrides that are used to impart flexibility and improve adhesion, pliability, and resistance to thermal shock.
These agents are used in a wide range of fields in everything from materials for surfactants, polyester modifiers, and corrosion inhibitors to lubricating oil additives, sizing agents, and epoxy resin curing agents.
| 제품명 | 구조식 | TDS | Appearance | Acid anhydride equivalent | Packing |
|---|---|---|---|---|---|
| RIKACID HF-08 | - |
|
Viscous, liquid | 310-360 （Carboxyl group equivalent） |
Can（20kg） |
| RIKACID OSA |
|
|
Viscous, liquid | 205-220 | Drum（200kg） Can（18kg） |
| RIKACID DDSA |
|
|
Viscous, liquid | 258-285 | Drum（200kg） Can（17kg） |
